2019 Karlville DSUP-400
Featured
2019 Karlville DSUP-400
or
Call +44 1924 25 29 29
Description

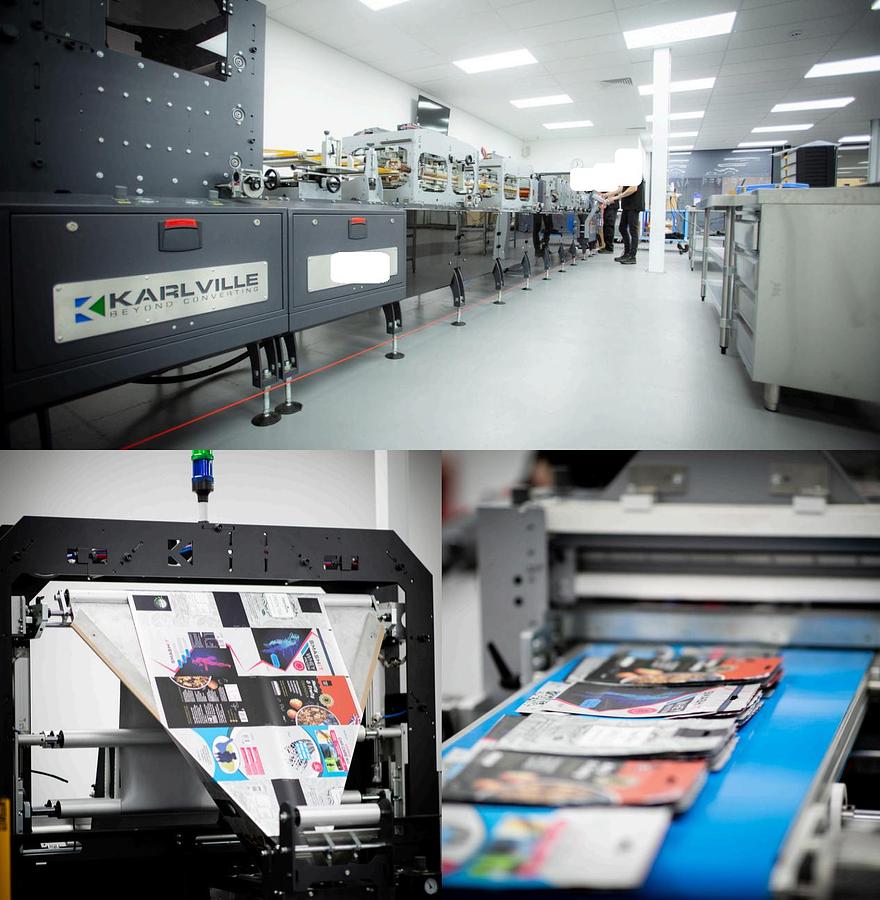

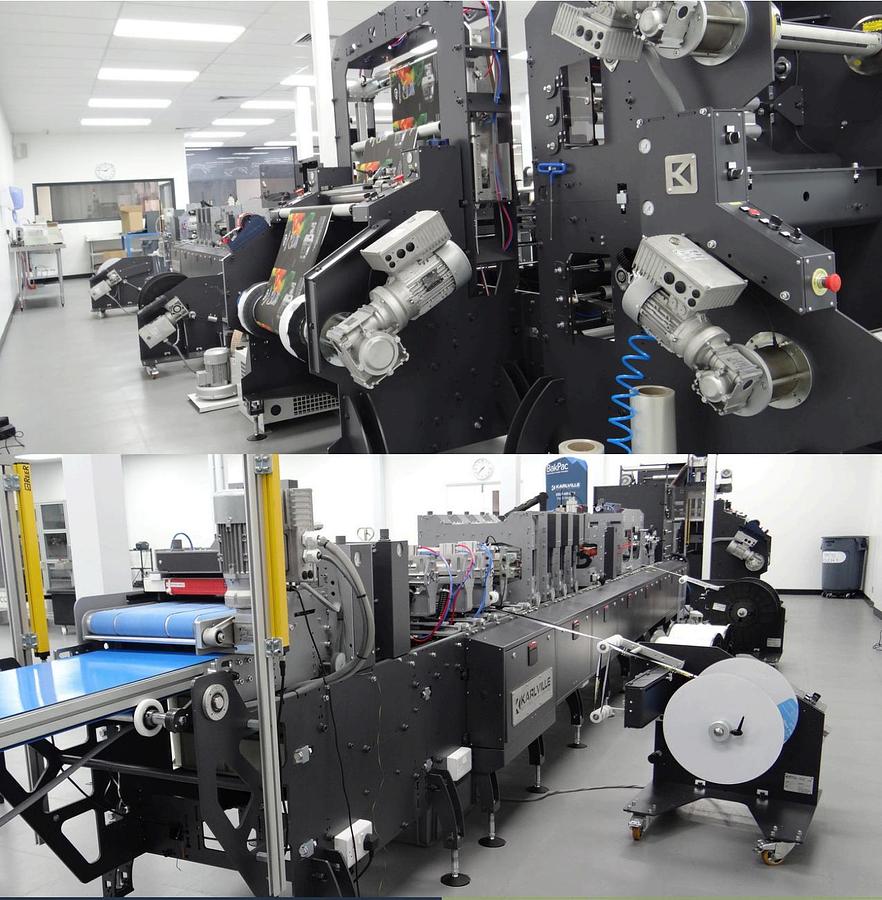

Karlville stand up pouch machine for sale.
In excellent condition and ready for sale today.
With the following additional extras...
- Ultrasonic zipper crush station
- Vacuum punch waste
- Gusset folding upgrade
- Second longitudinal station for smaller zipper pouches
- Separate skirt seal for multi web pouches
- Additional cross seal station for running mono materials
- Double cut function
- Additional trim rewinder
- Mono gusset seperator
- Extra punch bridge

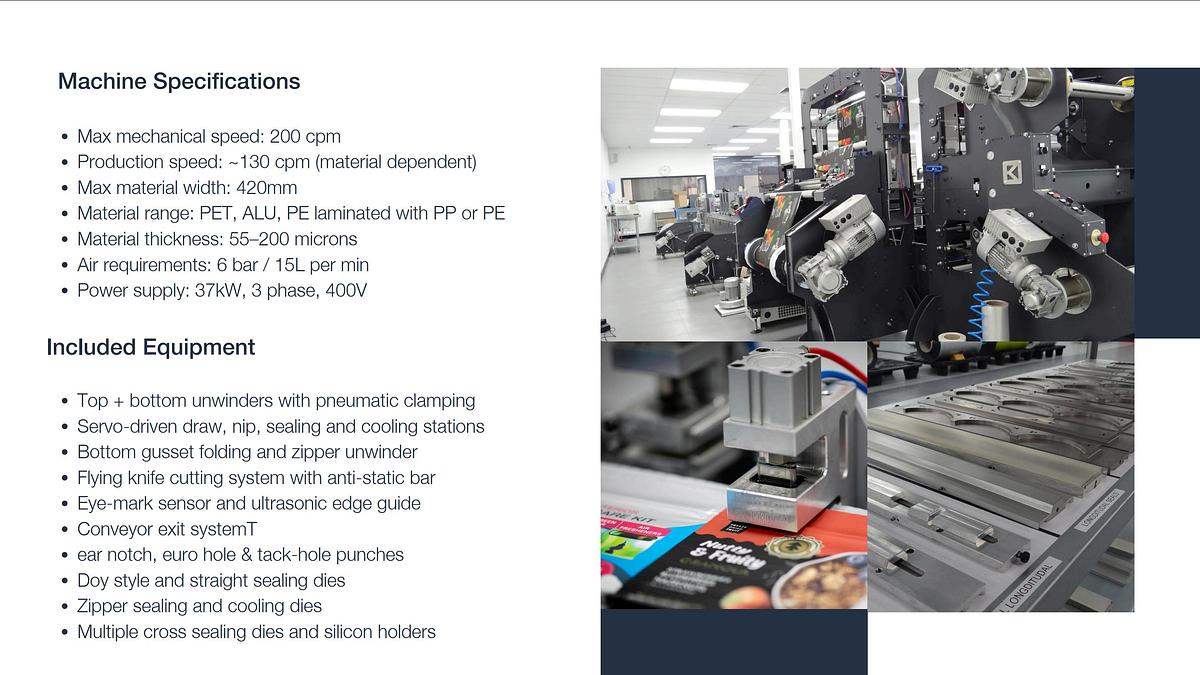

Specifications
| Manufacturer | Karlville |
| Model | DSUP-400 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 00083 |

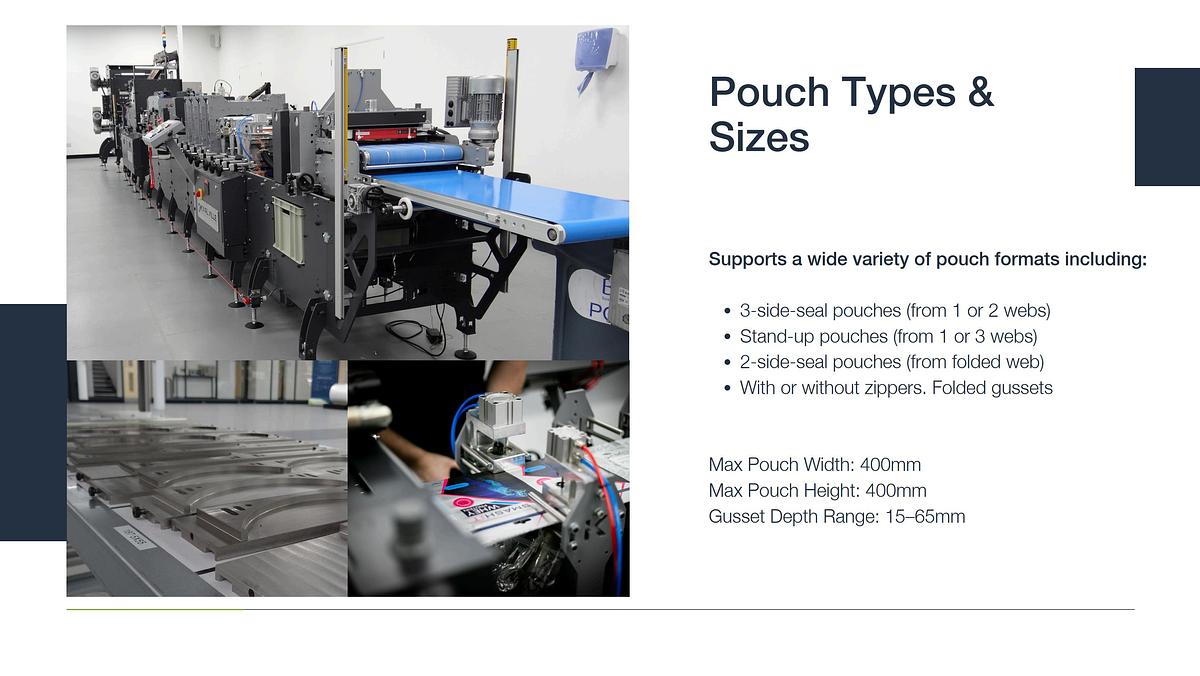

| Type of Pouch Produced | 3x side seal pouches (from 1 or 2 webs) | Stand up pouches (from 1 or 3 webs) | 2x side seal pouches (Folded web) | With/without zippers or folded gussets |
| Pouch Width (mm) | 400 |
| Pouch Height (mm) | 400 |
| Gusset Depth Range (mm) | 15-65 |
| Machine speed | 200 cuts per min |
| Material Thickness Range | 55-200µ |
| Suitable for the following Materials | PET, ALU, PE laminated with PP or PE |
| Anti Static System | Yes |
